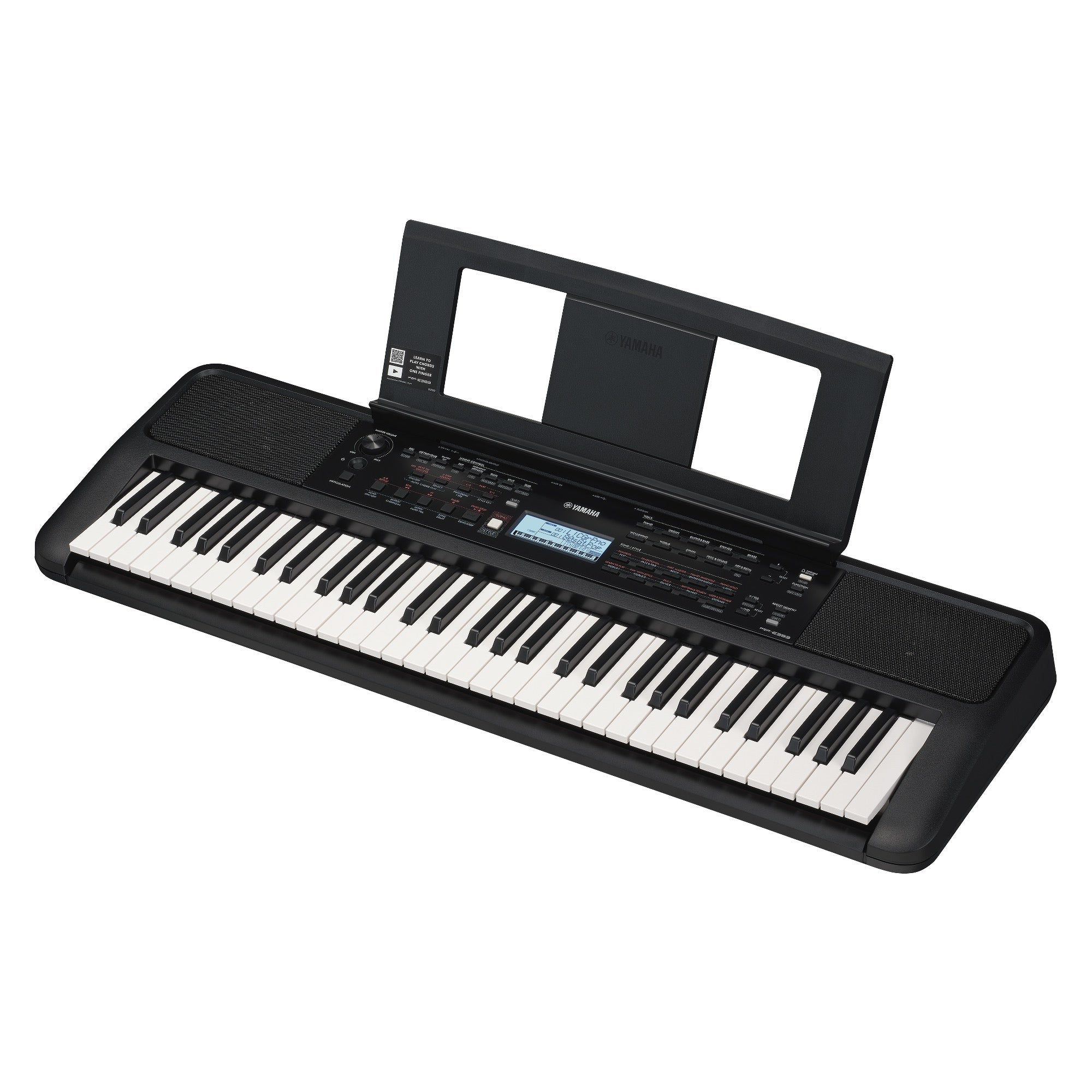

PSR-E383
61-key, standard model of Portable Keyboard for those who touch keyboard instrument for the first time, or even for players for performance usage. It is loaded with versatile functions, an expressive touch-sensitive keyboard action and many convenient functions so that even beginners can enjoy playing it right away.
EXPRESSIVE PLAYING PLEASURE
HAVE FUN, GET BETTER
AUTOMATIC BACKING MADE EASY
Simply by playing the root note of a chord (or the full chord), the powerful Style features automatically add rhythm, bass, and chordal backing notes to perfectly match the chords you play—easily allowing you to enjoy playing as if you were performing with an entire backing band. In addition, the Auto Chord Play function lets you automatically produce musically appropriate chord progressions and further expand your musical horizons.
| PSR-E383 | |
|---|---|
| Color/Finish | |
| Cabinet | Color: Black |
| Size/Weight | |

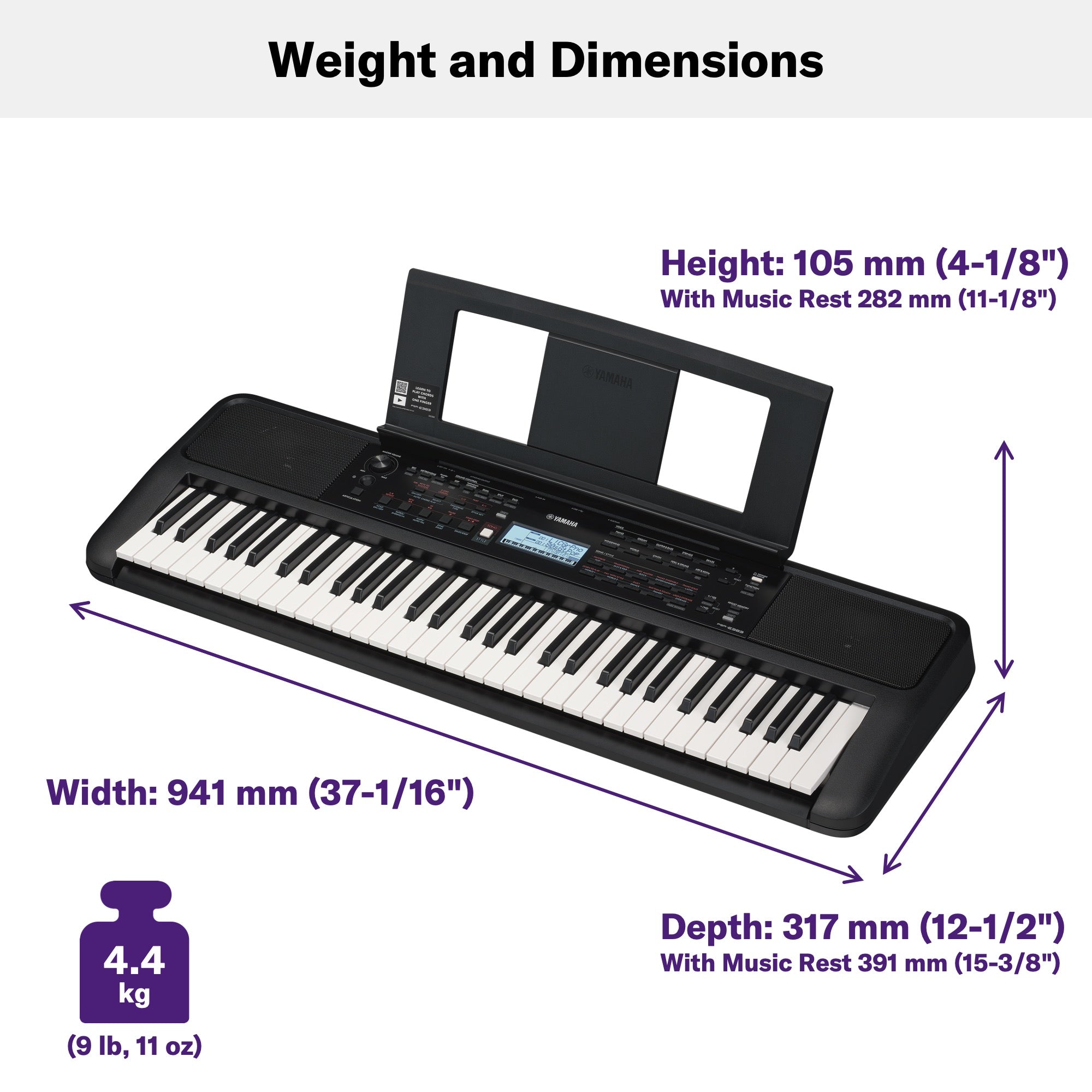

| Dimensions | Width: 941 mm (37-1/16”), Height: 105 mm (4-1/8”), Depth: 317 mm (12-1/2”) |
| Weight | 4.4 kg (9 lb, 11 oz) (not including batteries) |
| Control Interface | |
| Keyboard | Number of Keys: 61, Type: Organ-style, Touch Response: Yes (Soft, Medium, Hard, Off) |
| Display | Type: LCD, Backlight: Yes, Language: English |

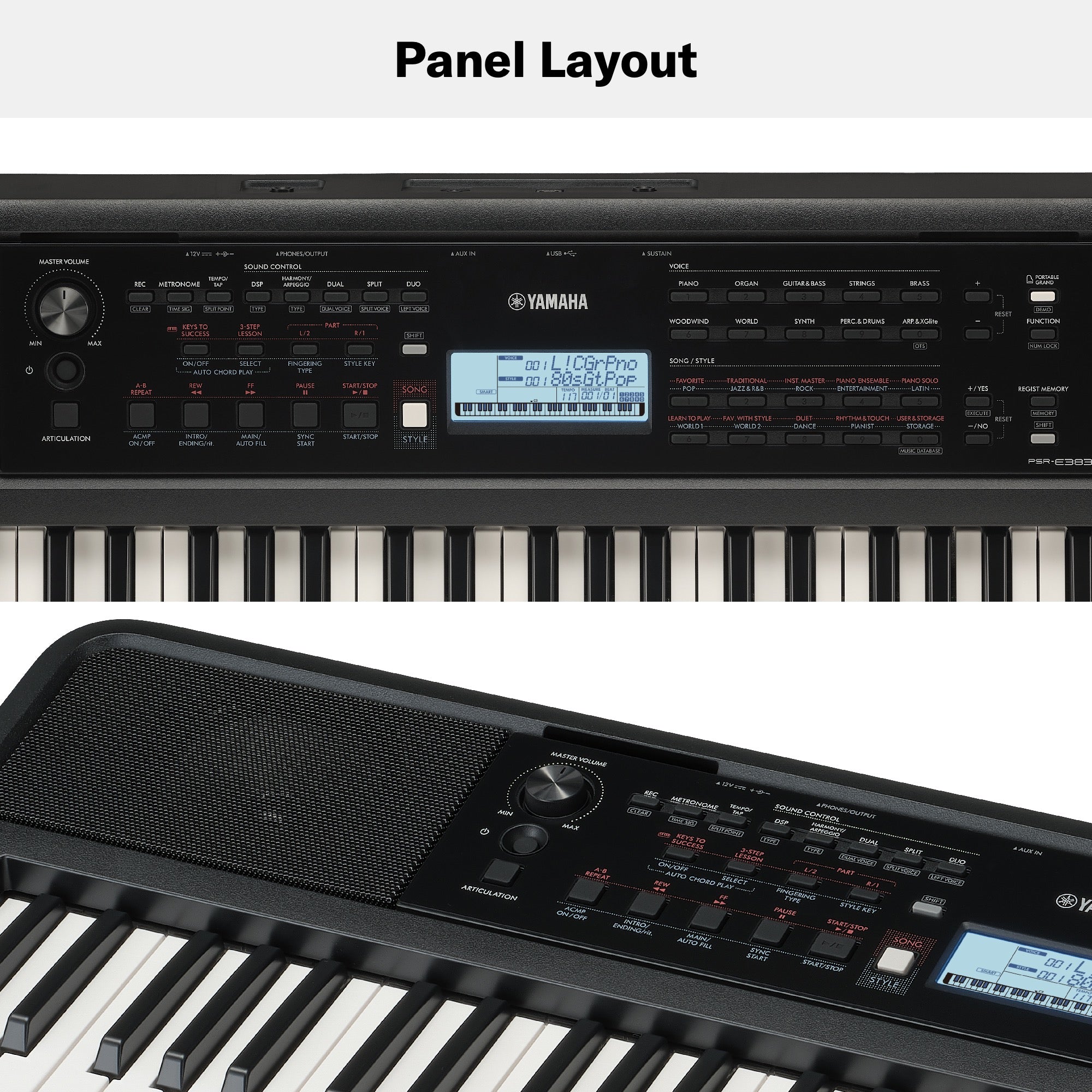

| Panel | Language: English |
| Voices | |
| Tone Generation | Tone Generating Technology: AWM Stereo Sampling |
| Polyphony | Number of Polyphony (Max.): 48 |
| Preset | Number of Voices: 650 (258 Panel Voices + 25 Drum/SFX kits + 20 Arpeggio + 347 XGlite Voices) |
| Compatibility | GM: Yes, XGlite: Yes |
| Effects | |
| Types | DSP: 41 types, Reverb: 15 types, Chorus: 7 types, Master EQ: 5 types, Harmony: 26 types |
| Functions | Dual: Yes, Split: Yes, Arpeggio: 152 types, Melody Suppressor: Yes |
| Accompaniment Styles | |
| Preset | Number of Preset Styles: 260, Fingering: Smart Chord, Multi finger, Style Control: ACMP ON/OFF, SYNC START, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, File Format: Style File Format (SFF) |
| Other Features | Music Database: 200, One Touch Setting (OTS): Yes, Auto Chord Play: 50 Chord Progressions |
| Expandability | Expansion Style: 10 |
| Songs | |
| Preset | Number of Preset Songs: 125 |
| Recording | Number of Songs: 5, Number of Tracks: 2, Data Capacity: Approx. 10,000 notes |
| Compatible Data Format | Playback: SMF Formats 0 & 1, Recording: Original File Format |
| Functions | |
| Lesson | KEYS TO SUCCESS, 3-Step Lesson (Listening, Timing, Waiting), A-B Repeat, Rhythm & Touch Tutor |
| USB audio interface | 44.1 kHz, 16 bit, stereo |
| Registration | Number of Memories: 10 |
| Overall Controls | Metronome: Yes, Tempo Range: 11 - 280, Transpose: -12 to 0, 0 to +12, Tuning: 427.0–440.0–453.0 Hz (approx. 0.2 Hz increments), Duo: Yes |
| Miscellaneous | PIANO Button: Yes (Portable Grand Button) |
| Storage and Connectivity | |
| Storage | Internal Memory: Approx. 1.4 MB |
| Connectivity | DC IN: 12 V, Headphones: Standard stereo phone jack (PHONES/OUTPUT), Sustain Pedal: Yes, AUX IN: Yes (Stereo mini jack), USB TO HOST: Yes (MIDI/AUDIO) |
| Amplifiers and Speakers | |
| Amplifiers | 2.5 W + 2.5 W |
| Speakers | 12 cm × 2 |
| Power Supply | |
| Power Supply | Adaptors: PA-130 or an equivalent recommended by Yamaha, Batteries: Six “AA” size alkaline (LR6), manganese (R6), or Ni-MH rechargeable batteries (HR6) |
| Power Consumption | 5 W (When using PA-130 AC adaptor) |
| Auto Power Off | Yes |
| Accessories | |
| Included Accessories | Music Rest: Yes, Song Book: Download from Yamaha website |
